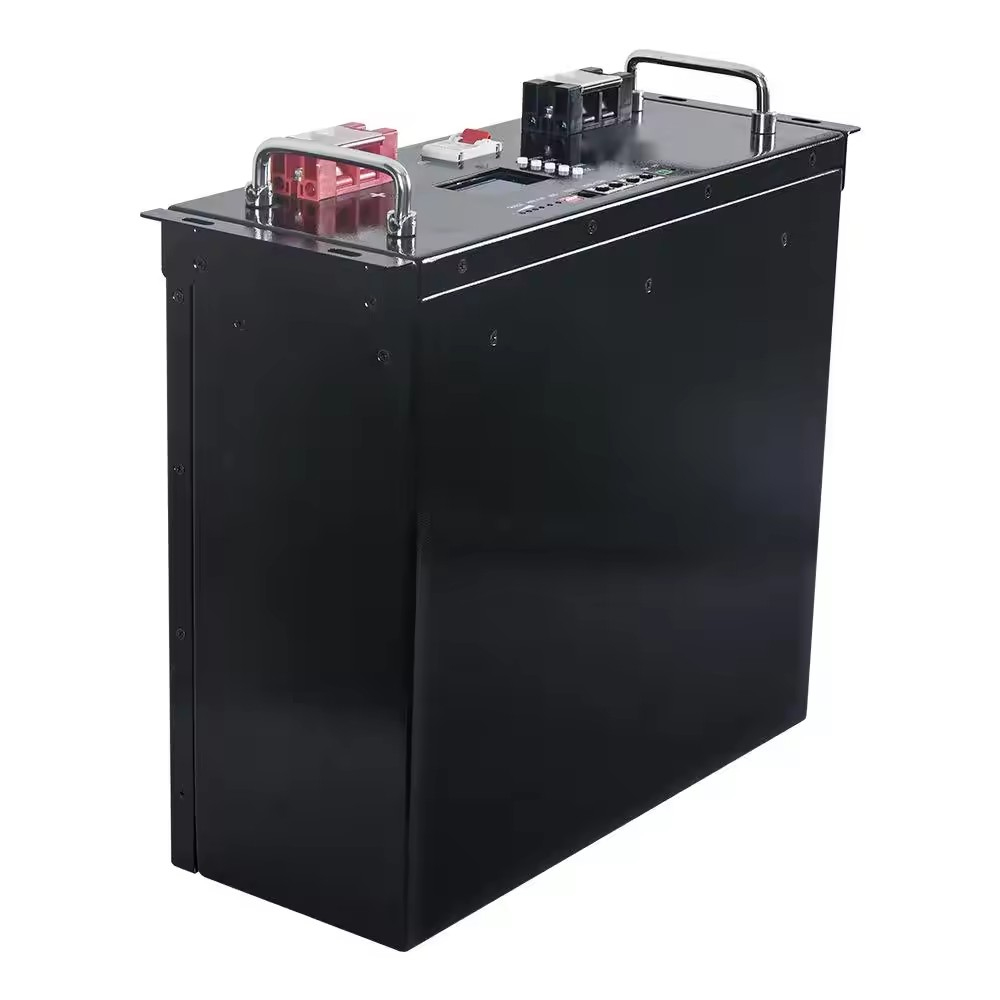

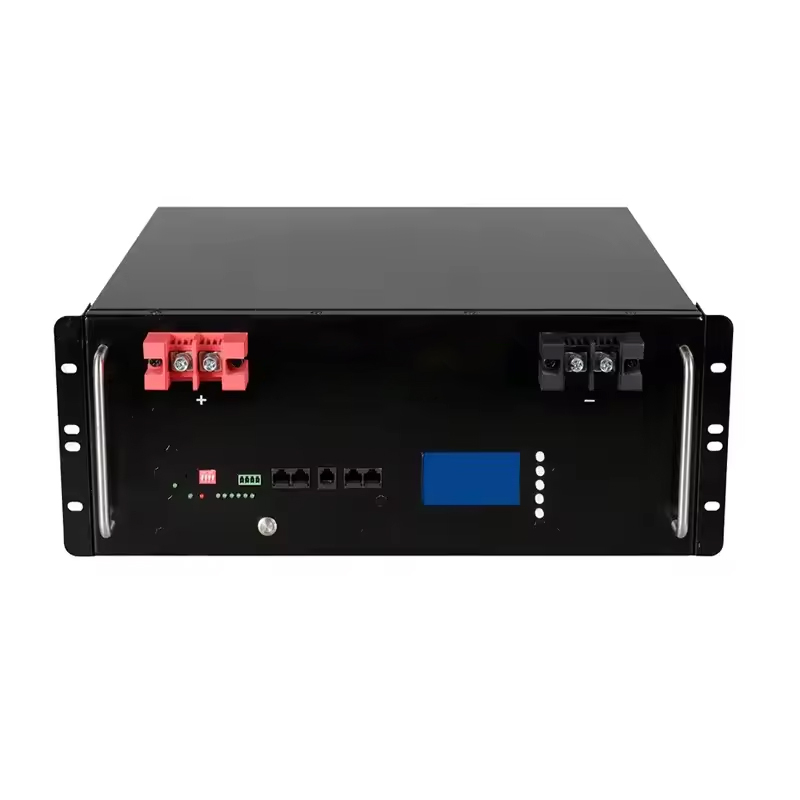

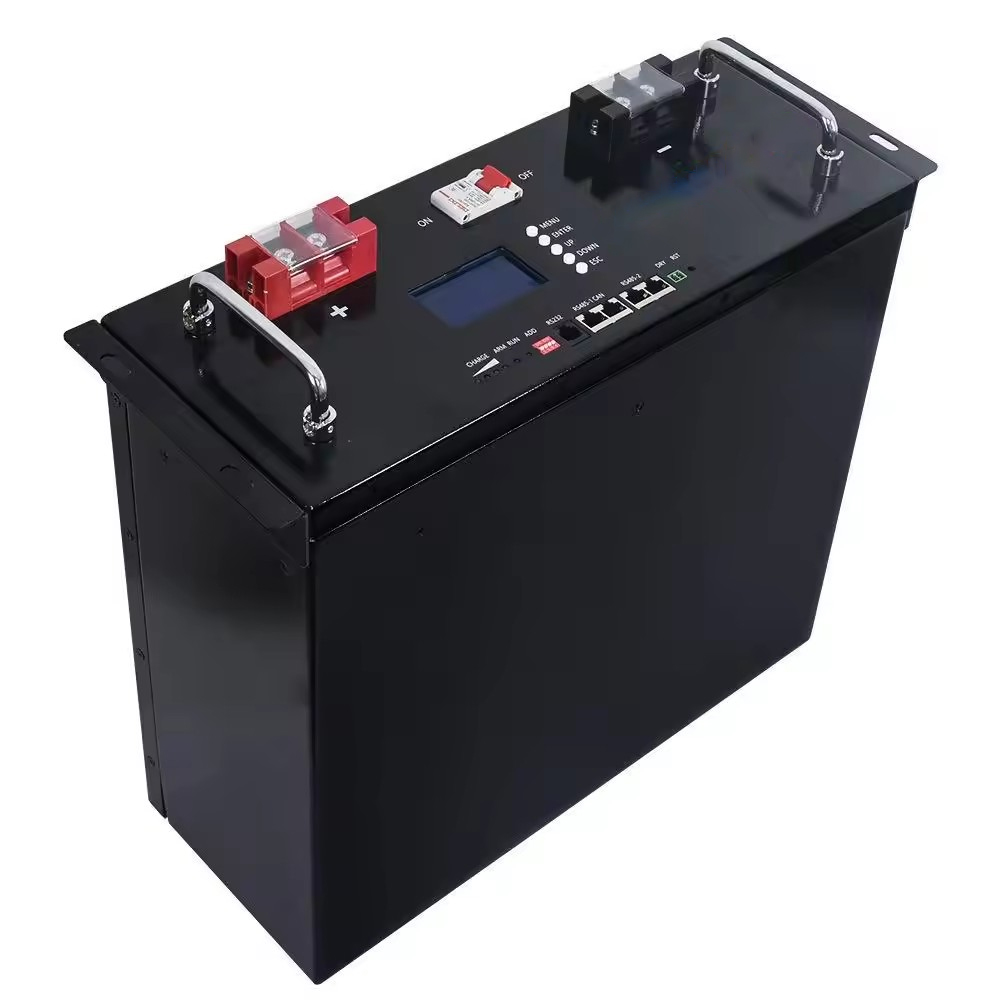

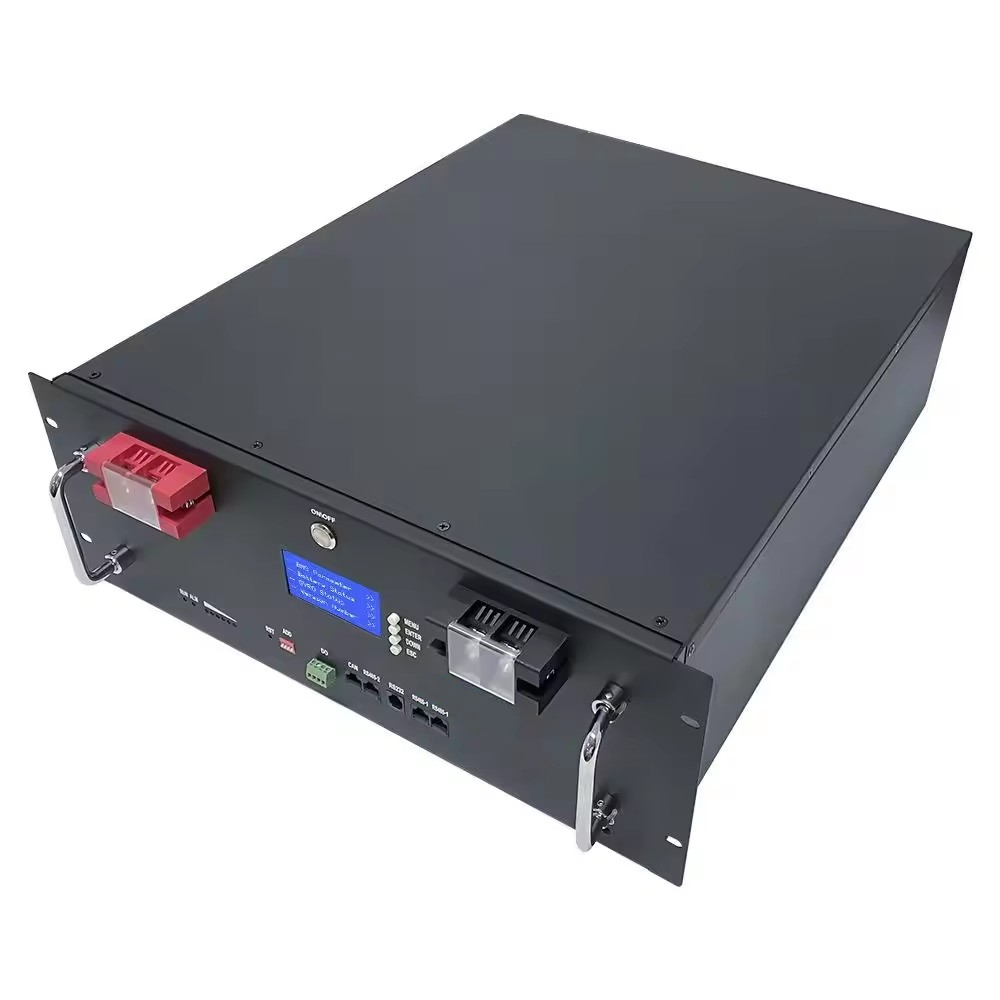

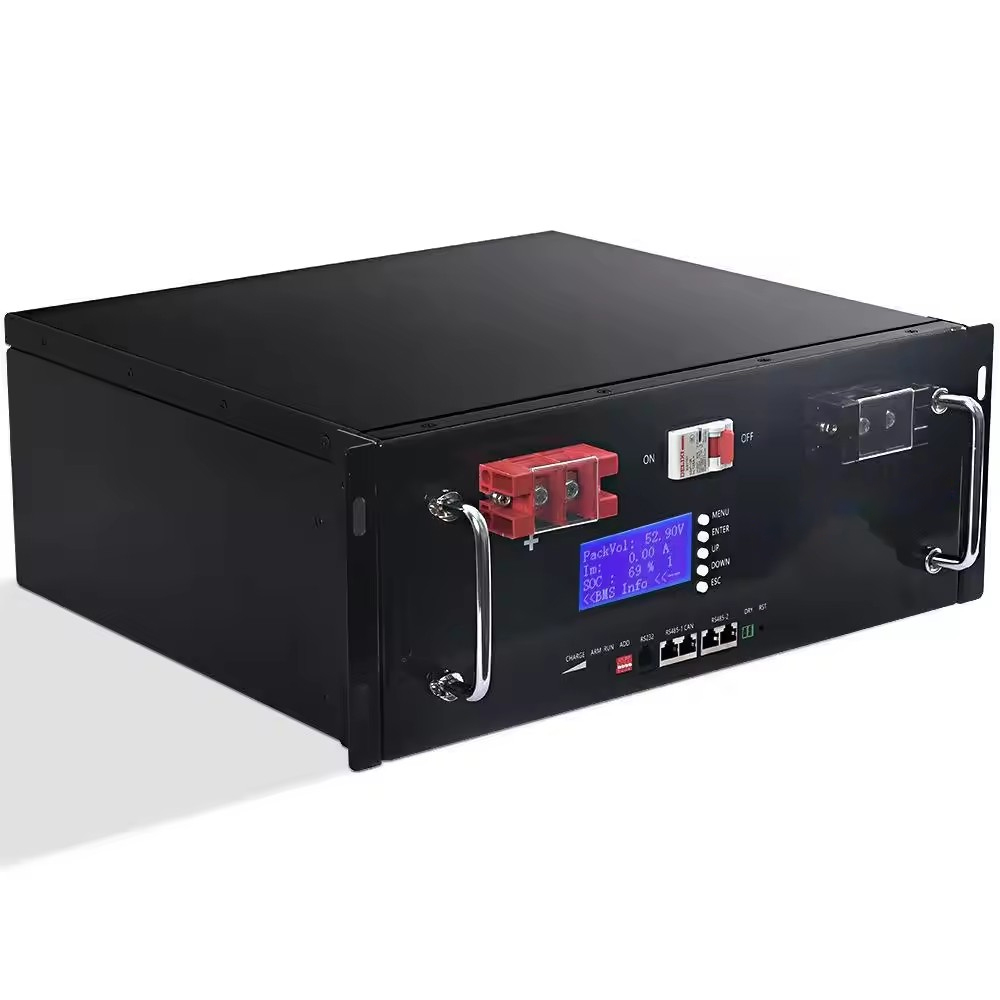

Lítium-ion napelem 51.2v 100ah 200ah 300ah

2024-08-27 11:02

termékleírás

Névleges feszültség51.2V51.2V51.2V
Névleges kapacitás100Ah230Ah304AH
Energia5120Wh11776Wh15360wh
Series or Parallel Connection16S1P16S1P16S1P
Maximális töltőáram100A200A200A
Charge Current (-20 to - 10 ºC)≤0.05C≤0.05C≤0.05C
Ajánlott töltőfeszültség56V-57.6V56V-57.6V56V-57.6V
A BMS töltőfeszültség-lekapcsolása57.6V (3.75±0.025vpc)57.6V (3.75±0.025vpc)57.6V (3.75±0.025vpc)
Csatlakoztassa újra a feszültséget54.6V (3.34 ±0.05vpc)54.6V (3.34 ±0.05vpc)54.6V (3.34 ±0.05vpC)
Dimensions (L x W x H)440*435*222mm (17.3x17.1x8.74”)480*248*618mm475*255*770mm
Súly70KG with wooden packing:116KG with wooden packing138KG with wooden packing
Kommunikációs felületRS485 (Optional)RS485 (Optional)RS485/CAN (Optional)
A tok anyagaFémFémFém
Enclosure ProtectionIP54IP54IP54
Maximális folyamatos kisülési áram100A200A200A
BMS kisülési áram lekapcsolása105A230A230A
Csatlakoztassa újra a feszültséget45V45V45V
Kisülési hőmérséklet-20 to 60ºC (-4 to 140 ºF)-20 to 60ºC (-4 to 140 ºF)-20 to 60ºC (-4 to 140 ºF)
Töltési hőmérséklet0 to 45ºC (32 to 113 ºF)0 to 45ºC (32 to 113 ºF)0 to 45ºC (32 to 113 ºF)

* Please Click Here:We Provide OEM /ODM Service !
* Quick Delivery From China.
We are committed to making the safest lithium iron phosphate batteries.
All of our batteries have undergone rigorous testing and are certified safe for use in applications around the world.
All lithium batteries in our sales comply with CE, UN38.3,MSDS and other transportation regulations, quick delivery from spot!
If you need product related certificate, please contact us to send to you!
* For additional benefits For resellers

we provide super price for you and policy, We offer one-stop solar energy storage solutions,please contact us directly and we will tell you more. Most importantly, we can provide you with professional solutions tailored to your local market.



Products Feature

1.Excellent safety performance: Safest lithium iron phosphate battery, CE BIS, MSDS, UN38.3 approved, with built-in BMS.

2.Long cycle life and deep cycle: Performs more than 6000 cycles, 6-8 times longer than lead acid battery.

3.No memory effect, highly efficient and high energy density.

4.Compact size and light weight: 1/2 size & weight of lead acid battery

5.Excellent high temperature performance

6.Low self-discharge rate: < 3% per month

7.High IP standard: IP65 Waterproof.



Alkalmazás

Gyárunk



Szállítás és csomagolás

GYIK

Q1. Do you have MOQ (Minimum Order Quantity) limit?
A: No, ALL IN ONE do not have MOQ limit, 1pc sample order or small quantity is available.

Q2. Mi a helyzet az átfutási idővel?
A: Standard product lead time: Samples: 3-5 days, Bulk order: 3-4 weeks.
Customized product lead time: 3-4 weeks both for sample or bulk order.

Q3. How do you ship the goods? How about the Shipping time?
A: By air door to door (6-12 days): FEDEX, UPS or DHL, suitable for urgent small order.
By sea door to door (25-50 days): suitable for bulk order.
By sea to delivery port (20-35 days): Suitable for bulk order.
By Air to airport (3-5 days): Suitable for urgent heavy package.

Q4. How to proceed with an order?
A: Firstly, providing your requirements or applications, then we will provide battery solution and quote accordingly.
Secondly, confirming the order and do the deposit for it, then we will arrange the production.

Q5. Is it available to print my logo on the product?
A: Yes. For OEM Demand please send us your logo and we will make a label for the product. For product with metal/aluminum case, logo silk-print on the case is available.



Jegyzet: Mi akkumulátorgyártó vagyunk. Minden termék nem támogatja a kiskereskedelmet, csak B2B vállalkozást folytatunk. Kérjük, vegye fel velünk a kapcsolatot a termékek árairól!
